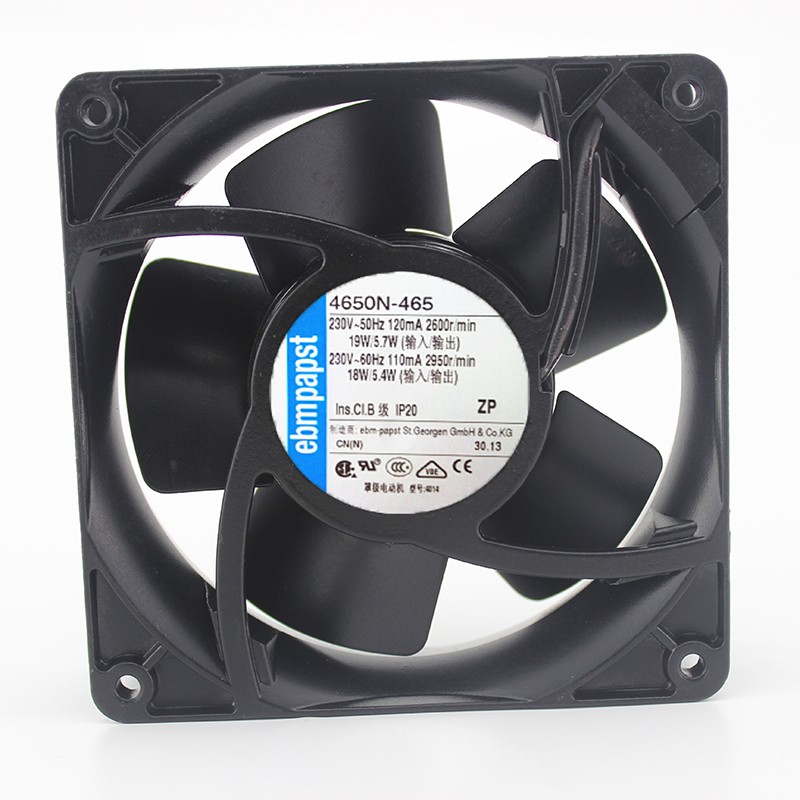

New ebmpapst fan 4656N 4650N 4650N-465 12038 AC cabinet cooling fan

Brand EBM Papst
Voltage 230 Volts
19 watts
Noise level 47 dB
Maximum rotational speed 2650 rpm



Introduction to the types of cooling fans
In life, common cooling fans are divided into two types:

One is an axial flow fan;
The other is a turbo fan, also known as a centrifugal fan.
Axial Fan
Axial flow fans are very widely used, that is, the airflow in the same direction as the axis of the fan blades, such as electric fans, air conditioner outdoor fans are axial flow fans.

The reason why it is called “axial flow” is because the gas flows parallel to the axis of the fan, and it can be understood that the direction of blowing is perpendicular to the plane of rotation of the fan. Axial flow fans are usually used in applications with high flow requirements and low pressure requirements.

Features:
Generally speaking, the flow rate of the axial flow fan is relatively large, but the wind pressure is relatively small; that is, the direction of the wind blown in or sucked in is perpendicular to the direction of the fan blade, that is, parallel to the rotation axis of the fan.

Rectifier grid: The rectifier grid is used on the inlet pipe of the blower to balance the airflow.
With the continuous improvement of technology, the capacity of the blower is also getting larger and larger, which requires the airflow entering the blower to be as balanced as possible to reduce the vibration of the blower and ensure the pressure of the blower to supply air to the blast furnace (if the airflow is unbalanced, hitting the obstruction object, there will be a reaction force, causing the fan to vibrate).

When the fluid passes through the bend, energy loss is caused by the change of flow direction and uneven distribution of the fluid, which leads to an increase in the flow resistance of the pipeline, and the fluid is prone to turbulent flow. On the blower inlet pipe, turbulence is more likely to develop with elbow fittings due to the larger pipe diameter.
A set of staggered guide vanes are arranged in the rectifying grid, so that the fluid can pass through the guide vanes smoothly and orderly, which reduces the disturbance of the airflow to the blower blades, and reduces the pressure loss caused by the steering of the airflow.

turbo fan
Another type of turbo fan is also called a centrifugal fan. The rotation of the fan blades of the turbo fan causes changes in the airflow; it should be noted that the airflow of the axial fan is parallel to the axis of rotation and perpendicular to the plane of rotation of the blades;

Note the difference between centrifugal fans, the airflow is perpendicular to the shaft and parallel to the blades.

However, centrifugal fans have strict requirements on structure and craftsmanship, otherwise it will generate a lot of noise, that is, when you play games, the computer CPU/GPU is refreshed quickly, which will generate a lot of heat. , has been loud; another reason is that when there is dust accumulation, the turbo fan will also generate a large noise value.
The first reason is that when the airflow of the fan flows through, due to the inertia and viscosity of the airflow, an unstable area of ​​the airflow – a turbulent area is formed. The air flow in these areas is very pulsating and variable, so noise is generated







We sell all kind of Fans brands like ADDA,  ebmpapst，SUNON，NMB， KAKU，Blauberg, ZIEHL-ABEGG, Wistro,  ABB, Ecofit (Schneider), Risun, Cesotec,  Shiro,  Rosenberg,  IKURA,  Royal Fan, Sanyo, Profan, Fulltech, Daring, SINWAN,Mdexx , Delta, ETRI,  Fans-tech.  Mitsubishi , Style Fan,. Bi-sonic,  SHxuanya, Maxflow,  Rotary fan,  Nidec, AVC， Sanju……Those are 100% New&orignal from agent.

And we can offer customized Fans of different size like :

20*20mm
25*25mm
30*30mm
38*38mm
40*40mm
45*45mm
50*50mm
60*60mm
70*70mm
80*80mm
88*88mm
90*90mm
92*92mm
104*104mm
110*110mm
120*120mm
127*127mm
135*135mm
140*140mm
150*150mm
160*160mm
172*150mm
176*89mm
180*180mm
200*200mm
205*205mm
220*220mm
225*225mm
280*280mm
254*89mm

Here are :

Inverter fan
Siemens inverter fan
Inverter fan
Schneider inverter fan
AB (Rockwell) inverter fan
Yaskawa inverter fan
Emerson Inverter Fan
Fuji inverter fan
Henry Fan
AC Axial Fan
DC Axial Fan
DC blower
IP55-68 waterproof fan
